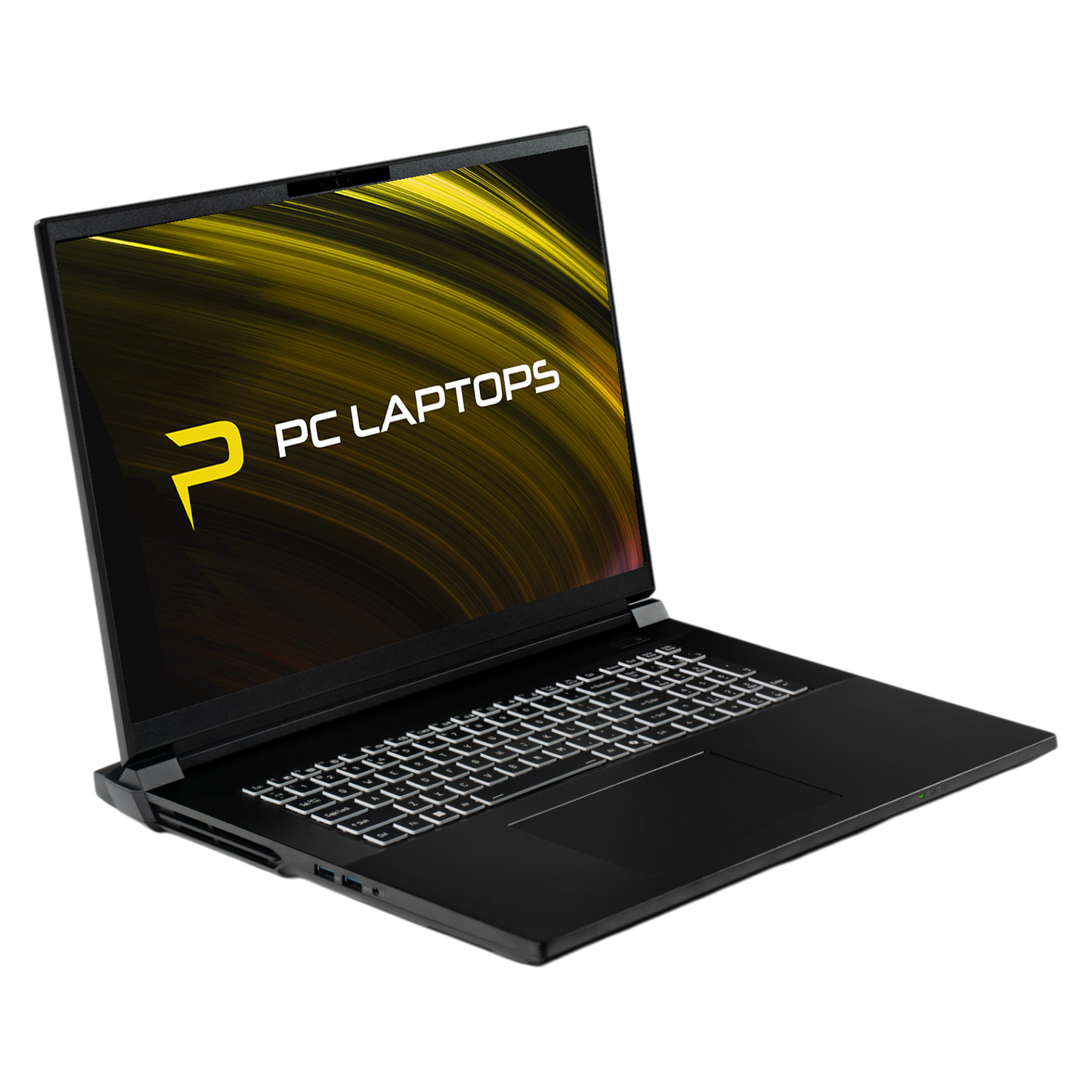

SM-10

As the Flagship of all PC Laptop notebook computers, the SM-10 's beauty runs far deeper than it's alluring profile. The SM10 features the latest Generation Intel© Core™ i7 processors and Dual GeForce GTX 1080 SLI GPU w/Nvidia Kepler Technology, coupled with a 17.3” Full HD Matte LED display producing impeccable clarity. From CAD design, to ultimate gaming domination, to running a business empire, you will annihilate any competition.

  • Overview
  • Performance & Power
  • Why PC Laptops ?
  • Financing Options

BREAKS NEW GROUND FROM EVERY ANGLE

Exclusive in audience and extraordinary in every way, the SM-10 defies constraints and compromise alike.

  • Everyday Use
    Best
  • Students
    Best
  • The Office
    Best
  • Photo & Video Editing
    Best
  • Gaming
    Best

Technical Specification

  • Processor
    Intel® Core™ i5-7600k Processor (3.80Ghz)
    Intel® Core™ i7-7700 Processor (3.60Ghz)
    Intel® Core™ i7-7700k Processor (4.2GHz)
  • Core Logic
    Intel® Z270 Express Chipset
  • Memory
    Up to 64GB of Dual Channel SODIMM 2400mhz DDR4 RAM
  • Display
    17.3” Full HD (1920x1080) IPS Matte Display with G-SYNC Technology
  • Graphics Processor
    NVIDIA® GeForce™ GTX 1070
    NVIDIA® GeForce™ GTX 1080
    - Microsoft® DirectX® 12 Compatible
    - Support PCIe x16
    - MXM3.0 Type B
    - NVIDIA® PhysX® Technology
    - NVIDIA® CUDA™ Technology
  • Storage
    Two changeable 2.5” HDD/SSD, 7mm(H) / 9.5mm(H), SATA interface (RAID 0/1 support)
    (Factory Option) Two M.2 2280 SSD (RAID 0/1 support), SATA interface or PCIe  Gen3 x4 interface
  • Audio System
    High Definition audio interface
    S/PDIF Digital output
    Built-in Array Microphone
    2 Built-in 2W Onkyo Speakers
    External 7.1CH audio output supported by headphone, microphone, Line-in and S/PDIF jack
    Sound Blaster X-FI™ MB 5
    ANSP™ 3D sound technology on headphone output
  • Pointing Device
    Integrated touchpad with multi-gesture and scrolling function
  • Keyboard
    Full color illuminated full size keyboard with numeric pad and anti-ghost keys
    Fully programmable macro capability - customize individual key as hot key / multiple keystrokes in one key
    W/A/S/D gaming key
  • I/O Ports
    1 HDMI 2.0 output Port (with HDCP)
    2 DisplayPort 1.2 output Ports
    1 USB 3.1 (Gen2) / Thunderbolt 3 Combo Port (Type-C Port)
    3 USB 3.0 Ports
    1 eSATA / USB 3.0 Combo Port (1 x Powered USB port, AC/DC)
    1 Headphone Jack
    1 Microphone Jack
    1 Line-in Jack
    1 S/PDIF output Jack
    1 RJ-45 LAN (10/100/1000Mbps)
  • Slots
    6-in-1 Card Reader (MMC/RSMMC/SD/Mini-SD/SDHC/SDXC up to UHS-II)
    Three M.2 Card Slots
    - 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
    - 2nd and 3rd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface
  • Communication
    Killer Doubleshot™ Pro (Intergrated Killer E2400 Gigabit Ethernet LAN + Killer Dual Band Wireless-AC 1525 + Bluetooth, M.2) with Smart Teaming or
    Intel® Dual Band Wireless-AC + Bluetooth, M.2 interface
  • Security
    Kensington® Lock
    Integrated Fingerprint Reader
  • Power System
    Removable 8 cell Smart Lithium-Ion battery pack 82Wh
    Full Range AC-in 100~240V, 50~60Hz, 230W AC Adapter, DC output 19.5V, 11.8A
  • Operating System
    Windows?  10 (64 Bit)
  • Certificate
    Windows® 10 (64-bit) Logo
    HDMI Logo
  • Physical Characteristic
    7.5 LBs with Battery Pack
    16.46" (w) x 11.10" (d) x 1.52" (h)
  • Other Features
    Rubber Painting
    Built-in 2.0M FHD Video Camera
    Battery Engine
